Project 3: Wildmeat

See the Wildmeat repository for the job code. These jobs run on the Wildmeat OpenFn.org project. https://github.com/OpenFn/wcs-wildmeat

Wildmeat Kobo Integration 2020

EU SWM uses Kobo Toolbox to collect data on Rural Consumption across sites (see the Kobo form template here). OpenFn automates data integration between Kobo Toolbox and a Postgresql transitional database.

(1) Data Flows & OpenFn Jobs

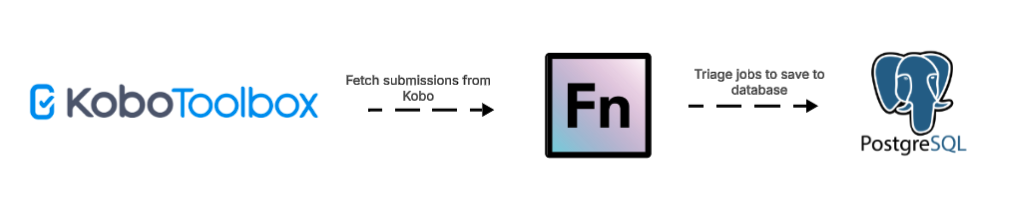

See this data flow diagram. The following jobs are configured on OpenFn.org to run automatically.

  1. fetch-rc-submissions.js: On a timer-basis, OpenFn fetches all Kobo survey submissions where form name contains “Rural Consumption”. This job sends the Kobo data to OpenFn.org and automatically triggers the next job.
  2. rural-consumption-to-postgres.js: OpenFn automatically cleans, maps, & loads the Kobo survey data into structured tables in a Postgres Wildmeat database.

(2) Mappings

See here for the integration mapping specifications. These jobs leverage language-postgresql to perform upsert() operations in the Postgres database.

(3) Assumptions

  1. The jobs and mapping design are based on this DRC version of the Rural Consumption Kobo survey.
  2. All data cleaning will be done in Kobo Toolbox. Every time Kobo data is synced with the DB, it will overwrite the records saved there and use the above uuid to upsert existing records.
  3. Kobo forms only capture species code, not name. OpenFn was unable to determine a way to match this species code to the relevant species name and taxonId, so OpenFn is only mapping the code until a master list of species codes and corresponding names can be provided.
  4. The jobs currently use hard-coded values for study_id (‘1000’) and site_id (‘1001’) as this information is currently not captured in the Kobo forms. All surveys will be mapped to these default site and study record.
  5. See Wildmeat Map for a list of fields that were intentionally not mapped in these jobs (i.e., tbl_individual_char).
  6. All Kobo surveys to be fetched by OpenFn will contain “Rural Consumption” in the form name. If this criteria should change, job #1 should be updated.
  7. All surveys will have a default sample unit (e.g., kilograms).
  8. All surveys will have the default type consumption to start (but downstream other types like hunter or market may be added).

Wildmeat Kobo Integration 2021 (Phase 2)

(1) Solution Overview

OpenFn has configured an automated data integration solution between Kobo Toolbox and a PostgresSQL database to sync Kobo submissions and enable real-time monitoring of field data collection.

See here for the data model of the destionation database.

(2) Integration Flow

The solution is a one-way Kobo Toolbox-to-PostgresSQL integration that connects the following Kobo form types: Urban Consumption, Rural Consumption, Market, Offtake.

See here for the full list of Kobo forms which were used to design these integrations.

See here for the data element mapping specification for exchange data between Kobo and the database.

Triggers
Trigger Type: Message Filter
A message filter trigger has been configured for each of the forms above. The corresponding job will run when a form with the matching message filter is recieved in the project inbox. These can be adjusted in the OpenFn project.

Data Mappings
The Kobo forms map to the following database tables:

DB Table External Uuid Source data Form Type
tbl_site site_id hardcoded default (e.g., 1001) All
tbl_sample sample_id _id + _xform_id_string Rural Consumption
tbl_study study_id hardcoded default (e.g., 2001) All
swm_transaction uuid _id + _xform_id_string Rural Consumption
tbl_individual individual_id _id Rural Consumption
tbl_individual_char individual_char_id _id Rural Consumption
tbl_household household_id _id Rural Consumption
tbl_household_char household_char_id _id Rural Consumption
tbl_wildmeat wildmeat_id species Rural Consumption
tbl_market external_id market (e.g., “djazzi”) Market
tbl_wildmeat_market wildmeat_id species Market
tbl_sample_market sample_id _id + _xform_id_string Market
tbl_hunter_monitoring hunter_monitoring_id id_hunter Offtake
tbl_wildmeat_hunter wildmeat_id species_id Offtake
tbl_sample_hunter sample_id _id + _xform_id_string Offtake
tbl_wildmeat_urban wildmeat_id wildmeat Urban Consumption
tbl_individual_urban individual_id _id Urban Consumption
tbl_sample_urban sample_id _id + _xform_id_string Urban Consumption

(3) Assumptions & Considerations for Change Management

  1. study_id & site_id are hardcoded values.
  2. This integration assumes that the master list of species used across forms has already been added to the PostgresSQL database. The master list can be found here.

(4) Administration & Support

Provisioning, Hosting, & Maintenance

This integration is hosted on OpenFn.org with hosted SaaS. The Postgres DB is managed by WCS/EU SWM Wildmeat partners (email: U.Muchlish@cgiar.org).

Questions or support needed?

Contact support@openfn.org.
